PLUTOSDR NANO Software Defined Radio Development Board
Product Overview
PLUTOSDR NANO is a powerful software defined radio (SDR) platform derived from Analog Devices ADALM-PLUTO . Both designs are based on the AD9363 RF transceiver and Xilinx ZYNQ7010 FPGA , providing wide frequency coverage and strong digital signal processing capability for wireless research, SDR learning, and communication system development.
Core Hardware Specifications
| Item | Specification |
|---|---|
| Main SoC | Xilinx ZYNQ-7000 XC7Z010-CLG400 |
| RF Transceiver | Analog Devices AD9363ABCZ |
| Architecture | ARM + FPGA Heterogeneous SoC |
| Frequency Range | 10MHz – 6GHz (Expandable) |
Memory & Storage
| Component | Details |
|---|---|
| DDR Memory | 512MB DDR3 |
| Non-Volatile Storage | 32MB QSPI Flash |
Clock & RF Front-End
| Item | Specification |
|---|---|
| TCXO | 40MHz, 0.5 PPM |
| Balun | Wideband RF Balance |
| RF Coverage | 700MHz – 2700MHz (Standard Antenna) |
Interfaces & Power
| Item | Details |
|---|---|
| USB Interface | USB Type-C (Data & Power) |
| USB PHY | USB3320 |
| Current Protection | 2A Fuse |
Package Contents
| Item | Description |
|---|---|

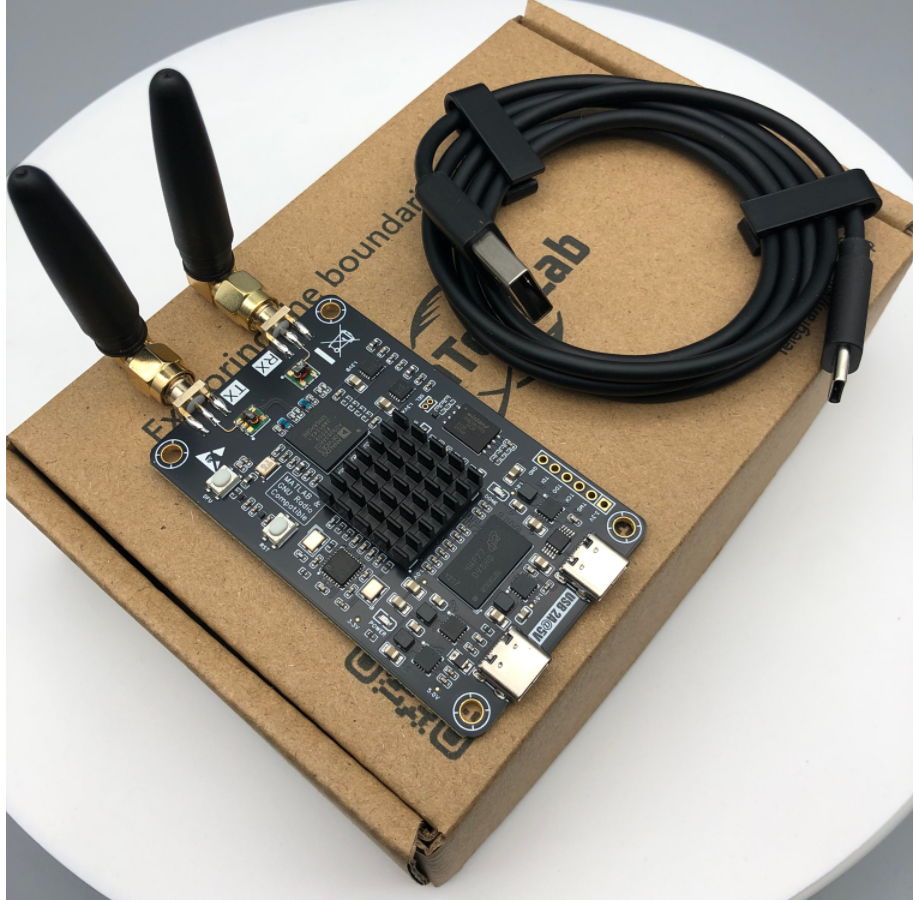

| Main Board | PLUTOSDR NANO SDR Board |
| USB Cable | Type-C Data Cable |
| Antenna | 700MHz – 2700MHz RF Antenna |
Extended Frequency Support
Analog Devices officially provides a method to extend the operating frequency range to 70MHz – 6000MHz .
Reference Guide:
https://wiki.analog.com/university/tools/pluto/users/customizing
