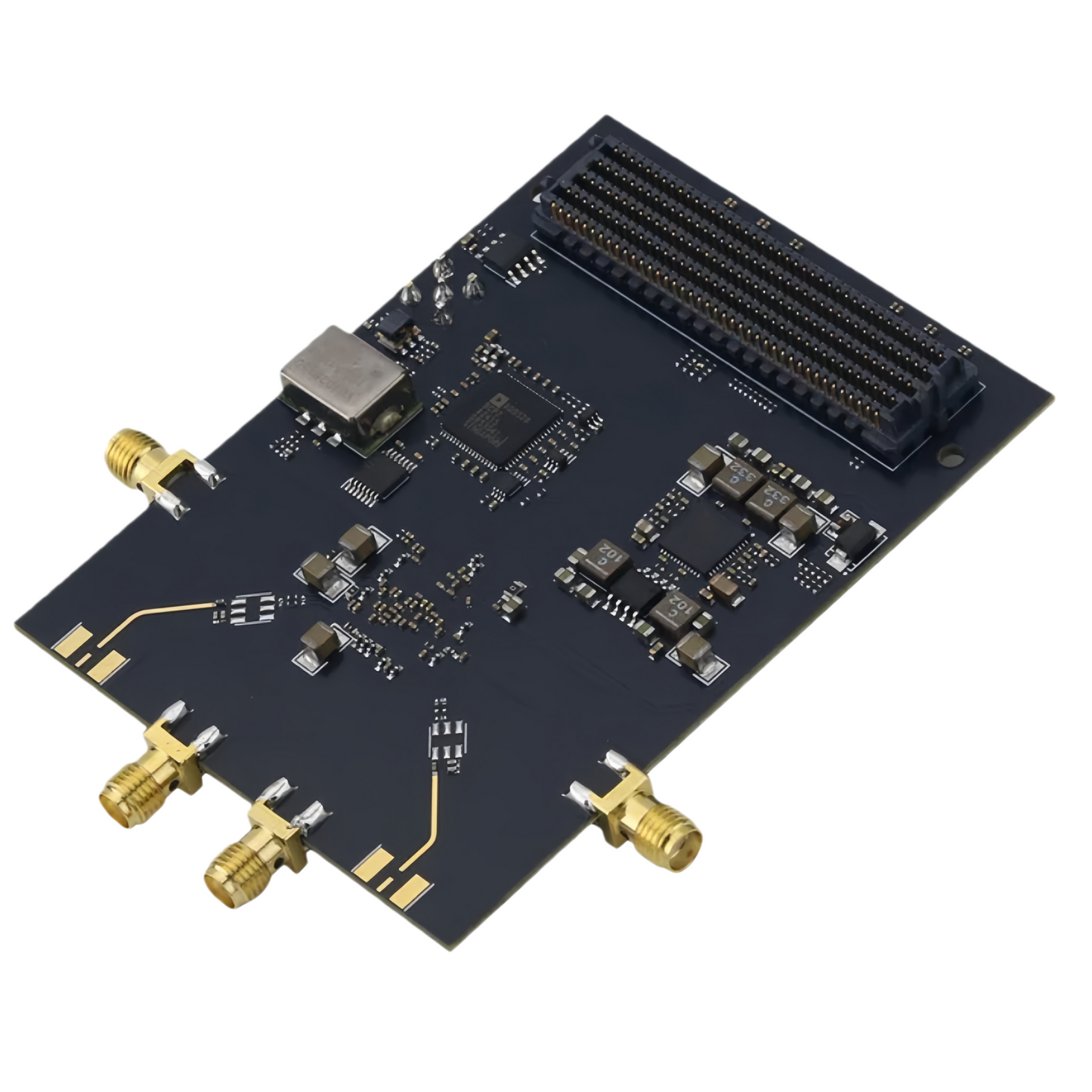

ADRV9371 FMC RF Transceiver Board Compatible with ZC706 for Wideband SDR Development

ADRV9371 FMC RF Transceiver Board Compatible with ZC706 for Wideband SDR Development

$269.90 USD
$269.90 USD
Распродажа Продано
Circuit board features

Official-Compatible SDR RF Board | Full Digital Throughput | HFSS-Verified RF Design

This SDR RF board is designed to be fully compatible with the official reference design , while optimizing interface simplicity and maximizing RF and digital performance. All critical signal routing follows the official layout, enabling direct use of official firmware and software without modification.

Official Compatible Full Digital Throughput HFSS Simulated JESD204B ZC706

Compatibility & Interface Design

Official Compatibility Fully compatible with the official board . Apart from removing GPIO pins, all other connector pin assignments remain identical to the official design , allowing direct use of official programs and firmware .
GPIO Configuration GPIO interfaces are intentionally removed (simplified), while preserving all critical high-speed and control signals.
Digital Performance The digital subsystem can run at full throughput , enabling the complete performance potential of the RF transceiver.

RF & Signal Integrity Performance

RF Simulation RF section is verified using HFSS electromagnetic simulation . Simulation results are available in the attached documentation.
Measured TX Power Measured transmit power data is provided. At 6 GHz , the output power is only 2.7 dBm lower than the official board, demonstrating excellent RF efficiency.
RF Consistency Controlled impedance routing and strict RF layout ensure stable wideband performance across the operating frequency range.

Software, Debug & Development Support

PS-Side Software Provides PS-side programs for JESD204B interface initialization and SPI configuration .
PL-Side Debug The PL side supports ILA for real-time observation of transmit and receive data paths.
Supported Platforms Validated on RIGUKE 7100 and Xilinx ZC706 development platforms.


Purchase & Documentation

Control Board Purchase Link:
YX-OS24-ZYNQ-7100 Control Board – Official Store

Documentation & Resources:
t.me/YanTechLab
