LibreVNA 100kHz–6GHz Two-Port VNA | Latest Flanged Version with Improved Thermal Dissipation

LibreVNA 100kHz–6GHz Two-Port VNA | Latest Flanged Version with Improved Thermal Dissipation

$584.00 USD
$779.00 USD $584.00 USD
Распродажа Продано
📡 Vector Network Analyzer (VNA) — up to 3 GHz

A complete professional RF measurement kit for lab, field and engineering applications 🔬⚡

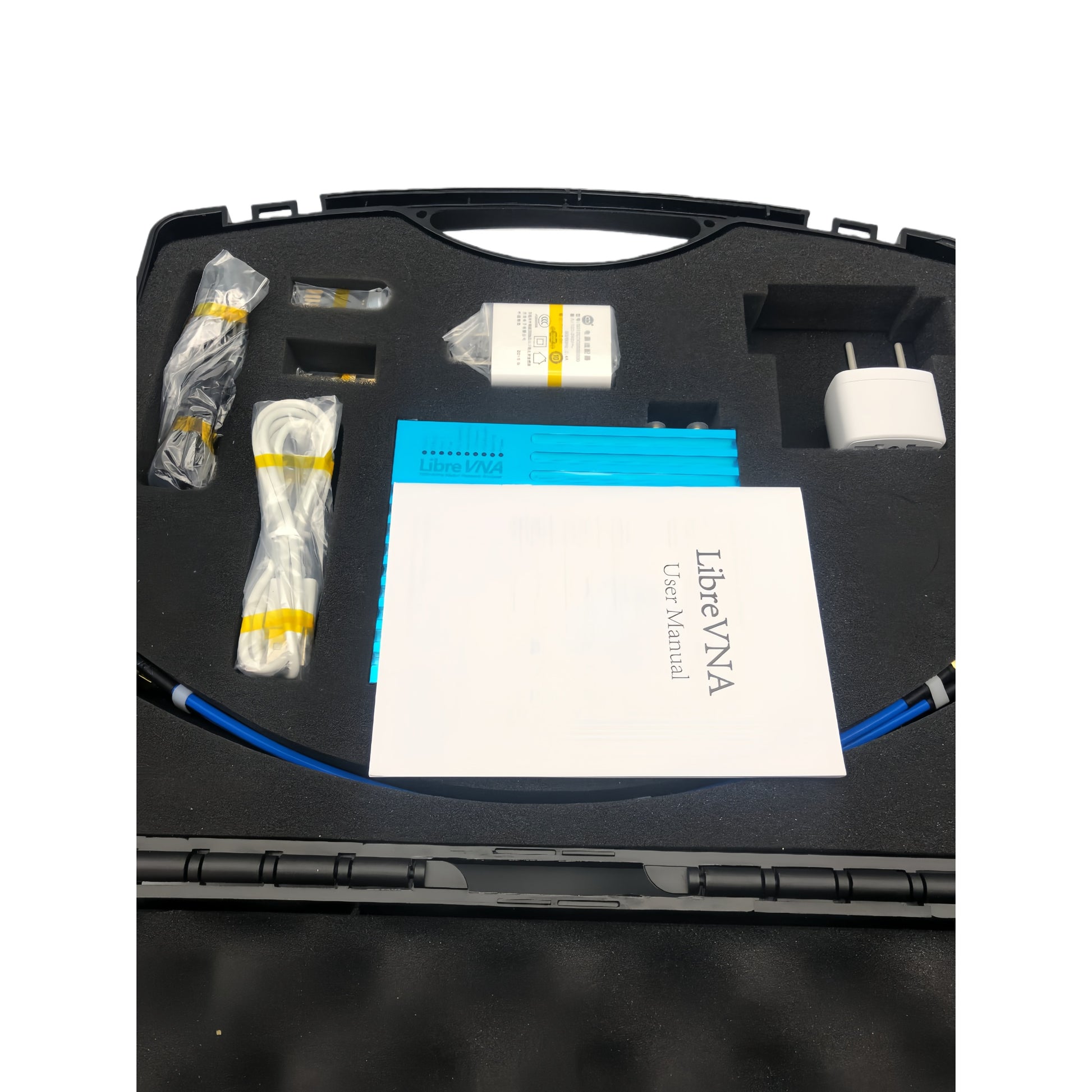

📦 Package Contents

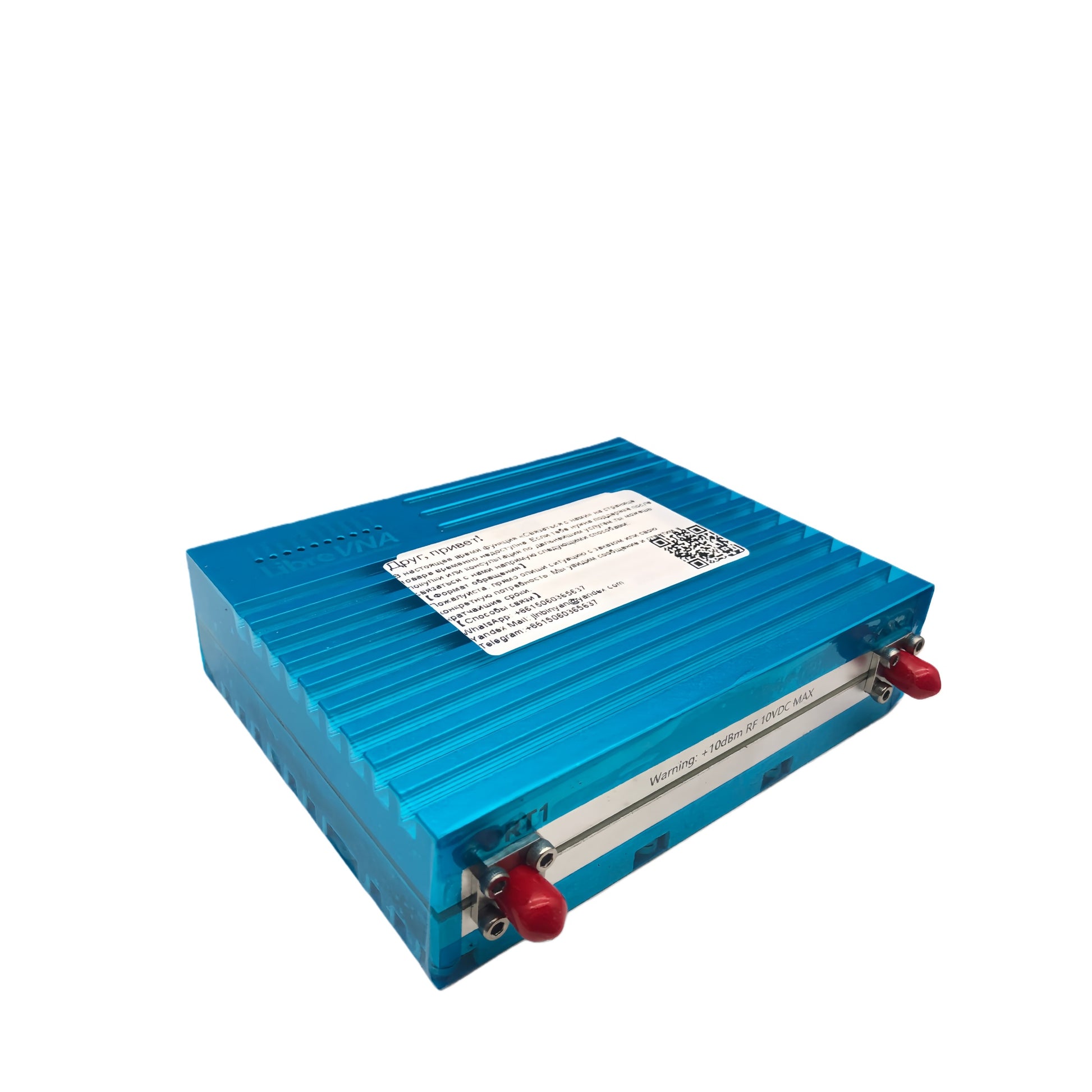

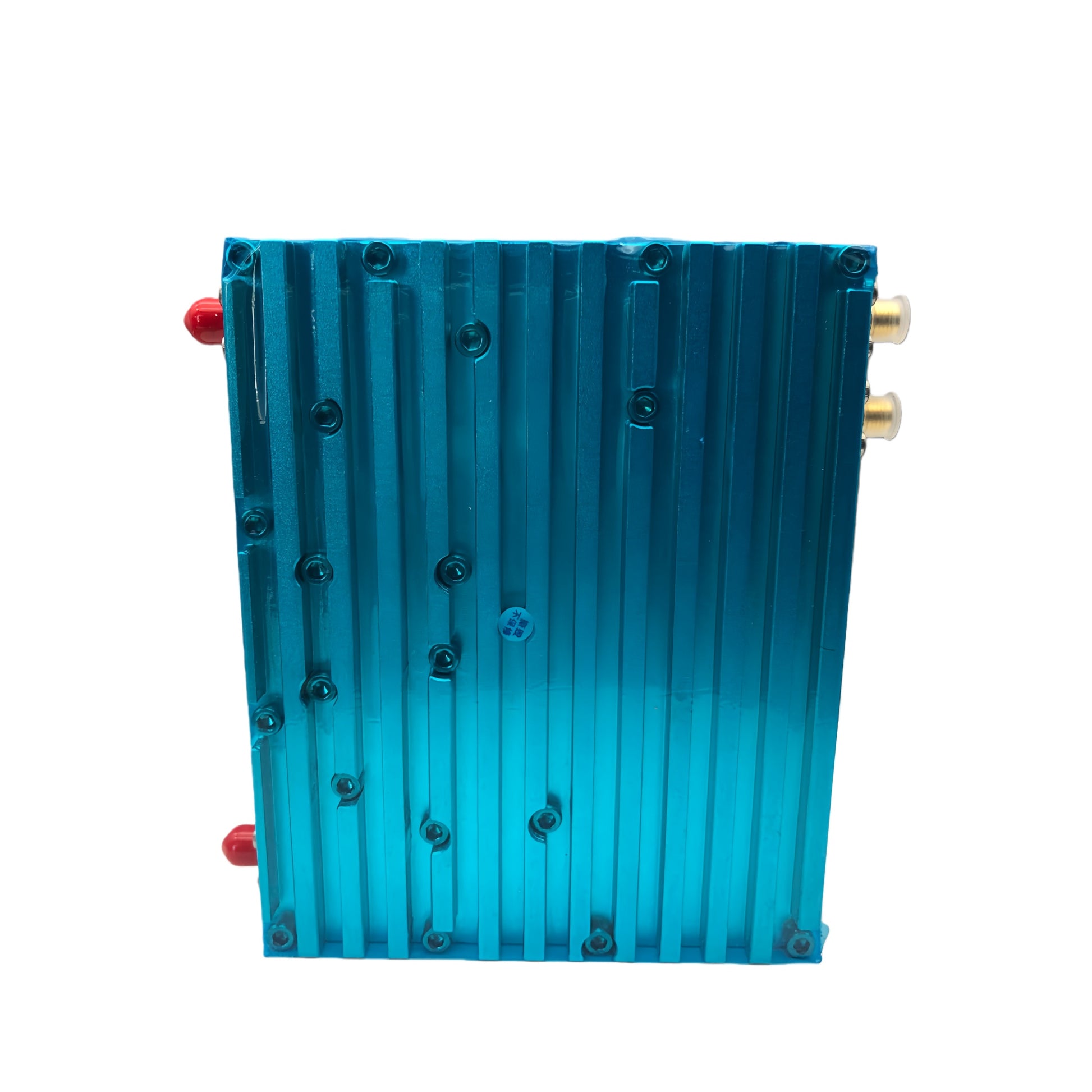

VNA Unit Reinforced metal enclosure with conductive sandblasted finish 💪
RF Cables High-quality coaxial cables for accurate measurements 🔗
Power Adapter 5 V / 2 A power adapter
Power Cable Included
USB Cable USB 3.0 high-speed data cable ⚡
Calibration Kit 5-piece calibration set (Open/Short/Load/Through etc.) 🎯
User Guide Detailed user manual 📘
Software U-Disk with software & component libraries 💾

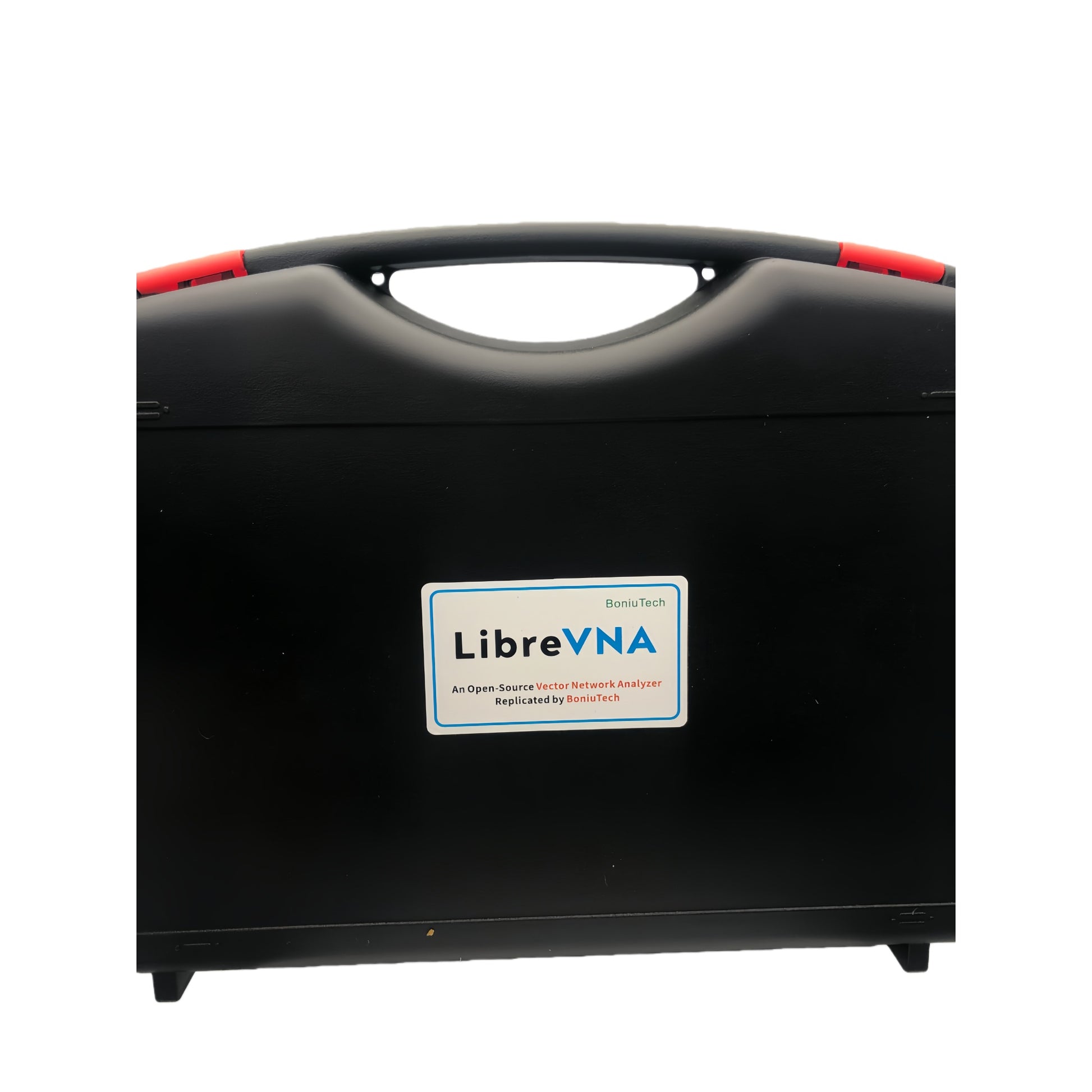

Organizer Storage organizer for the entire kit
📊 Technical Specifications
S21 Dynamic Range - Up to 3 GHz: approx. 100 dB
- Above 3 GHz: ≥60 dB
S12 Dynamic Range - Up to 3 GHz: approx. 100 dB
- Above 3 GHz: ≥50 dB
S11 / S22 Reflection parameters better than −40 dB across full range 📈
🎯 Key Advantages
  • ✅ Ready-to-use complete kit — all essential accessories included
  • ✅ Professional calibration for high measurement accuracy
  • ✅ Reinforced enclosure for mechanical protection
  • ✅ USB 3.0 ensures fast PC data transfer ⚡
  • ✅ Software + documentation for quick start
🛠️ Applications
  • 📡 Measuring frequency/phase response of amplifiers, filters & antennas
  • 🔌 RF matching network analysis
  • 🏠 Hobby RF projects — antenna tuning, filter design
  • 🔬 Research & education labs
