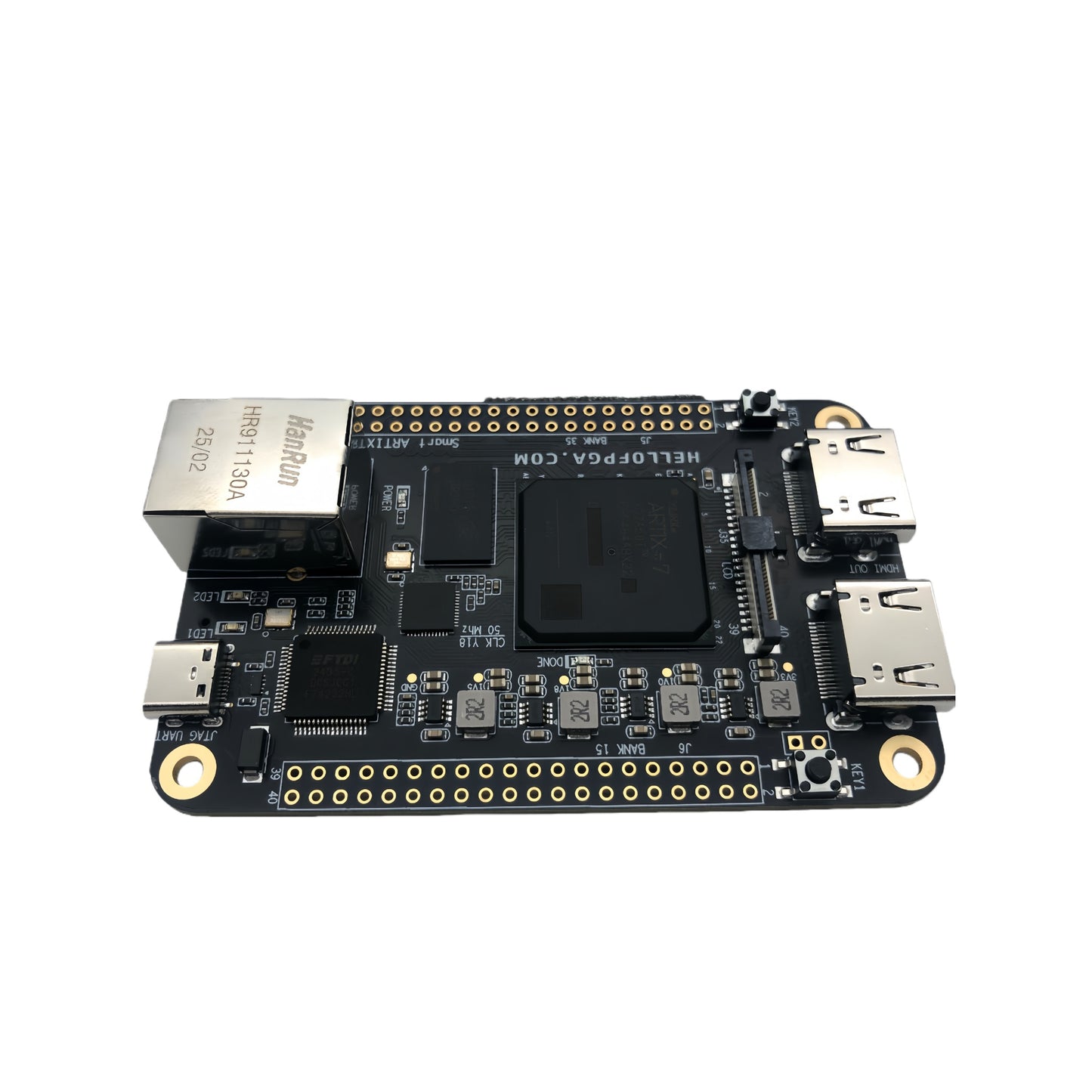

Smart ARTIX XC7A50T FPGA Development Board | Rich Peripherals and Gigabit Ethernet Port

Smart ARTIX XC7A50T FPGA Development Board | Rich Peripherals and Gigabit Ethernet Port

$95.40 USD
$127.20 USD $95.40 USD
Распродажа Продано

Artix-7 XC7A50T Development Board with 512MB DDR3, HDMI & Gigabit Ethernet

A professional FPGA development platform powered by Xilinx Artix-7 XC7A50T-2FGG484I. Designed for high-speed digital systems, video processing, network devices, and engineering education.

🚀 1. Processing System
  • Main Chip: Xilinx Artix-7 XC7A50T-2FGG484I
  • PCB: 8-layer gold-plated professional layout
  • Clock Source: 50 MHz oscillator
  • High-speed optimized routing for stability & signal integrity
🧠 2. Memory System
  • DDR3 RAM: 512MB (256M × 16-bit)
  • Flash: 128Mbit (16MB)
  • EEPROM: 24C02, 2 Kbit
🌐 3. Connectivity & Interfaces

Network:

  • Gigabit Ethernet PHY: RTL8211E

Video & Display:

  • 2× HDMI (input + output)
  • 40-pin RGB LCD interface (AtomDisplay compatible)

Storage:

  • MicroSD / TF card slot
🛠️ 4. Debugging & Programming
  • Built-in JTAG programmer
  • USB-UART (FT4232HL) with 3 virtual COM ports
  • USB Type-C interface
🔔 5. Indicators & Buttons
  • 2× user-programmable LEDs
  • DONE indicator
  • Power LED
  • 3 buttons including system RESET
⚡ 6. Power System
  • Power Input: USB Type-C or external 5V
  • One adjustable I/O bank voltage
  • One fixed I/O bank at 3.3V
📘 7. FPGA I/O Resources
  • Total I/O Lines: 68
  • All routed as differential pairs
  • Length-matched traces for high-speed interfaces
  • Optimized for LVDS, HDMI, high-speed signaling
