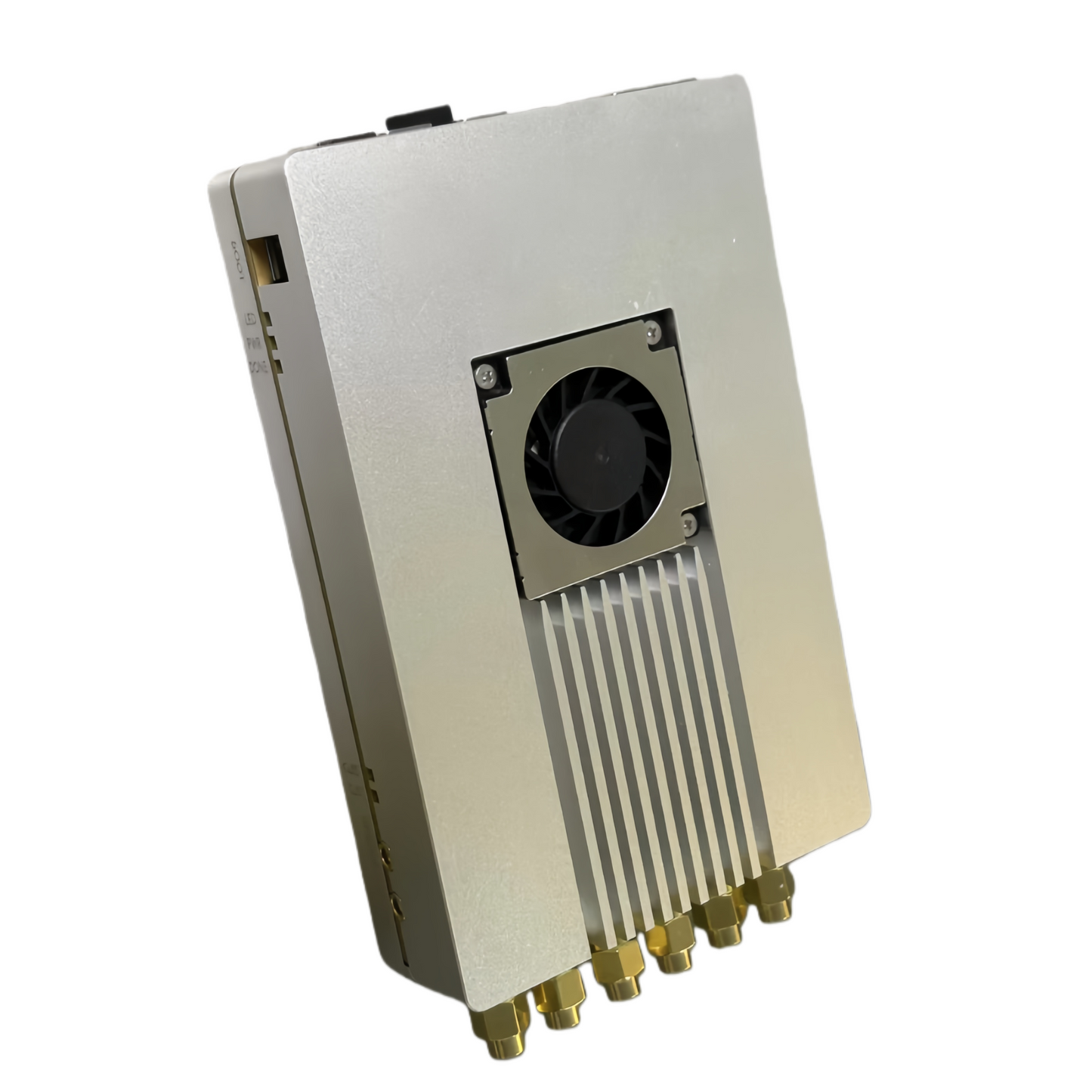

XC7Z100 + ADRV9371 SDR RF Transceiver Board with Preloaded Firmware, Supports ADI IIO Oscilloscope

XC7Z100 + ADRV9371 SDR RF Transceiver Board with Preloaded Firmware, Supports ADI IIO Oscilloscope

$597.90 USD
$597.90 USD
Распродажа Продано
Circuit board features

High-Performance SDR Control Board | Dual 1GB DDR | GPS | External RF Clock & LO

This SDR control board is designed for professional wideband RF and software-defined radio development . It integrates high-speed interfaces, precise clocking options, and onboard GPS, all housed in a CNC-machined aluminum cooling enclosure for thermal stability and long-term operation.

8×12 cm Dual 1GB DDR GPS Onboard External RF Clock 2TX / 2RX

Mechanical & Power Specifications

Board Dimensions Approx. 8 × 12 cm
Enclosure CNC-machined aluminum heatsink enclosure
Power Input DC 12 V

Peripheral Configuration

DDR Memory 1GB DDR (PS side)
1GB DDR (PL side)
Ethernet PS-side Gigabit Ethernet
USB PS-side USB 2.0 interface
RF Reference Clock Supports external reference clock input
RF Local Oscillator Supports external LO input
RF Channels 2× TX / 2× RX / 2× Observation TX (OTX)
GPS Module Onboard GPS module for timing and synchronization

Provided Documentation & Resources

Schematics Complete hardware schematics
Software Bare-metal driver source code

Documentation Access

All technical documents and software resources can be obtained via:
t.me/YanTechLab
